Place of Origin:
China/Cambodia
ブランド名:
Suntek
証明:
ISO9001, ISO13485, TS16949 and UL E476377
Model Number:
F9632-123

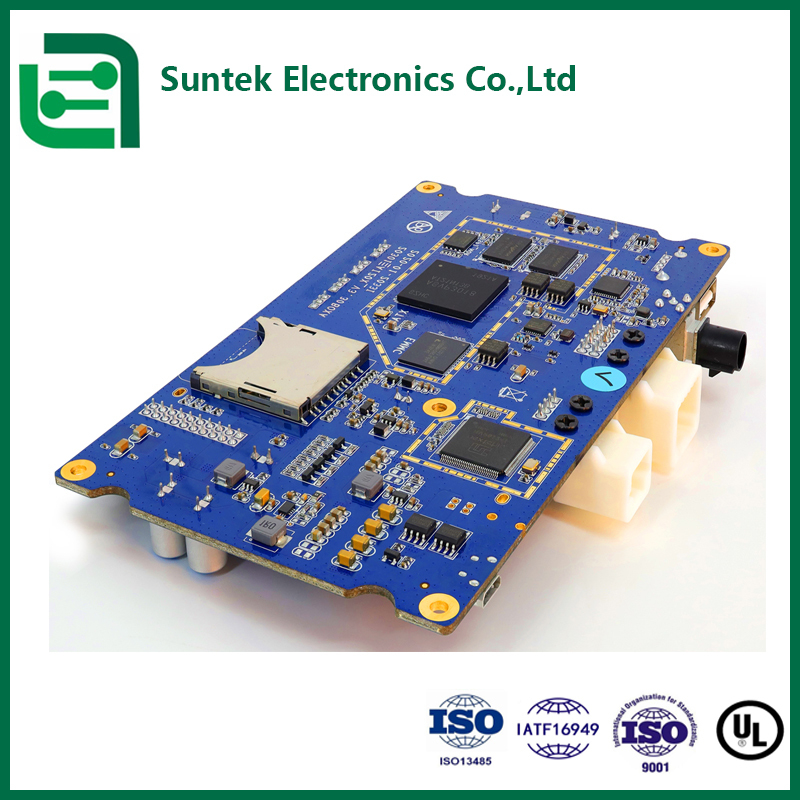

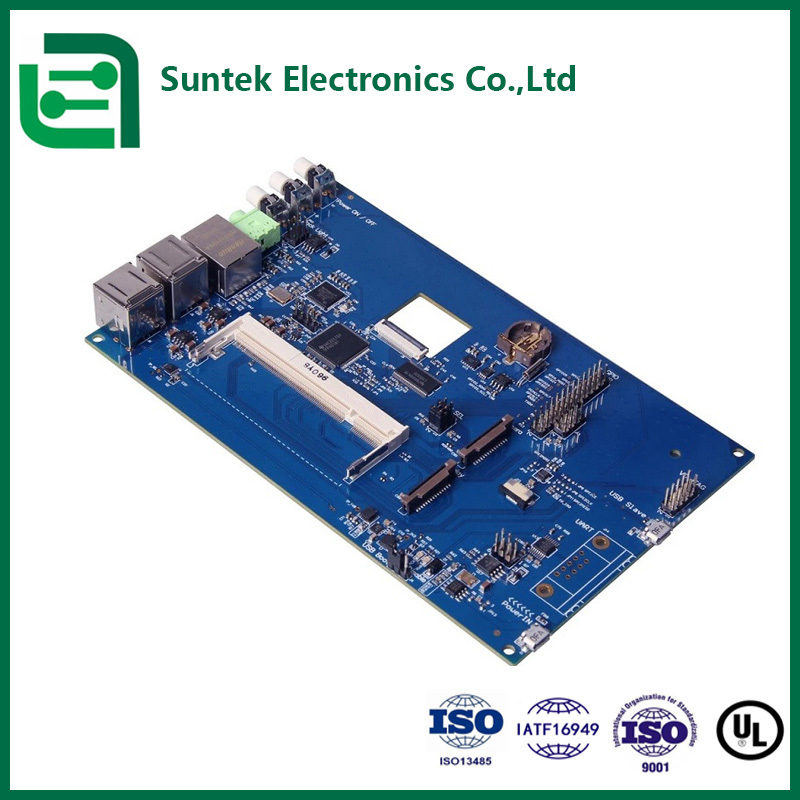

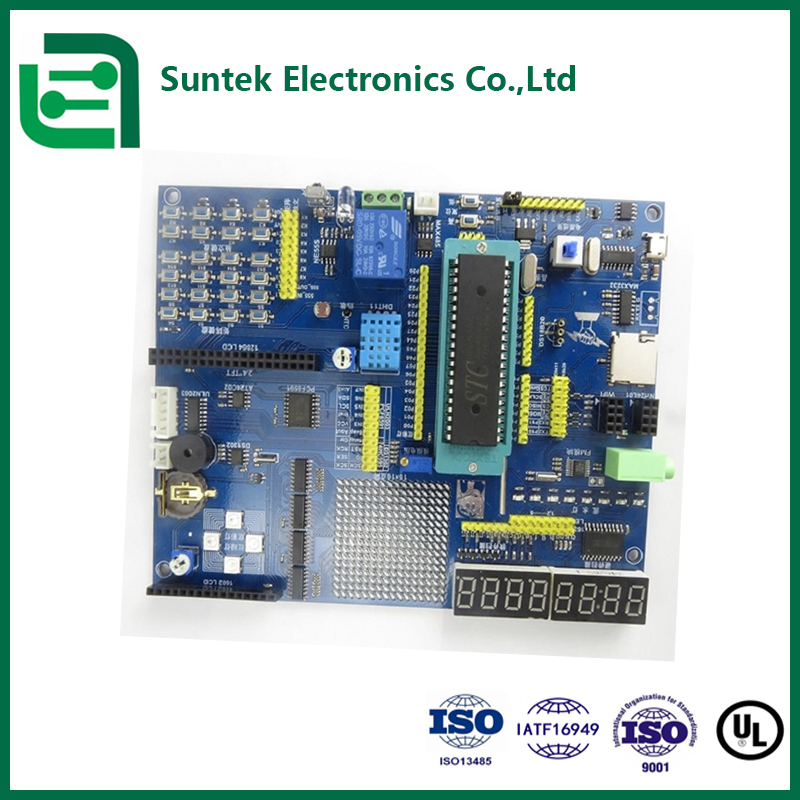

Suntek Group is a professional contract factory on one-stop solution for PCB/FPC assembly,Cable assembly,Mix technoloty assembly and Box-build assembly.
Suntek Electronics Co.,Ltd,as a major facility,located in Hunan province,China;
BLSuntek Electronics Co.,Ltd,as the new facility,located in Kandal province,Cambodia.
With ISO9001:2015,ISO13485:2016,IATF 16949:2016 and UL E476377 certified.We deliver qualified products with competitive price to clients all over the world.We have the advanced manufacturing equipments,proficient technology,professional engineer team,purchasing team,quality team and management team to guarantee the high quality products and on time delivery.
Our products are widely used in industrial control,auto,telecommunications,medical equipment,consumer electronics and etc.
core is "Quality wins Market, Ideas create the Future".
Technology Involved:
| Item | Capability |
| Min.Finished Board Thickness | 0.05mm |
| Max Board Size | 500mm*1200mm |
| Min Laser Drilled Hole Size | 0.025mm |
| Min Mechanical Drilled Hole Size | 0.1mm |
| Min. Trace Width/Spacing | 0.035mm/0.035mm |
| Min.Annular Ring of Single/Double-side Board | 0.075mm |
| Min.Inner Layer Annular Ring of Multi-layer Board | 0.1mm |
| Min.Outer Layer Annular Ring of Multi-layer Board | 0.1mm |
| Min Coverlay Bridge | 0.1mm |
| Min. Soldermask Opening | 0.15mm |
| Min.Coverlay Opening | 0.35mm*0.35mm |
| Min Single-ended Impedance Tolerance | +/-7% |
| Min Differential Impedance Tolerance | |
| Max Layer Count | 12L |
| Material Type | PI,Kapton |
| Material Brand | Shengyi,Taiflex,Thinflex,ITEQ,Allstar,Panasonic,Dupont,Jiujiang |
| Stiffener Material Type | FR4,PI,PET,Steel,AI,Adhesive Tape,Nylon |
| Coverlay Thickness | 12.5um/25um/50um |
| Surface Finish | ENIG,ENEPIG,OSP,Gold Plating,Gold Plating+ENIG,Gold Plating+OSP,Imm Silver,Imm Tin,Plating Tin |
Special Technology Involved
◆ IC Programming
◆ BGA rework
◆ Chip on Board/COB
◆ Eutectic soldering
◆ Auto-Gluing
◆ Conformal Coating
Assemly Flow Chart:
