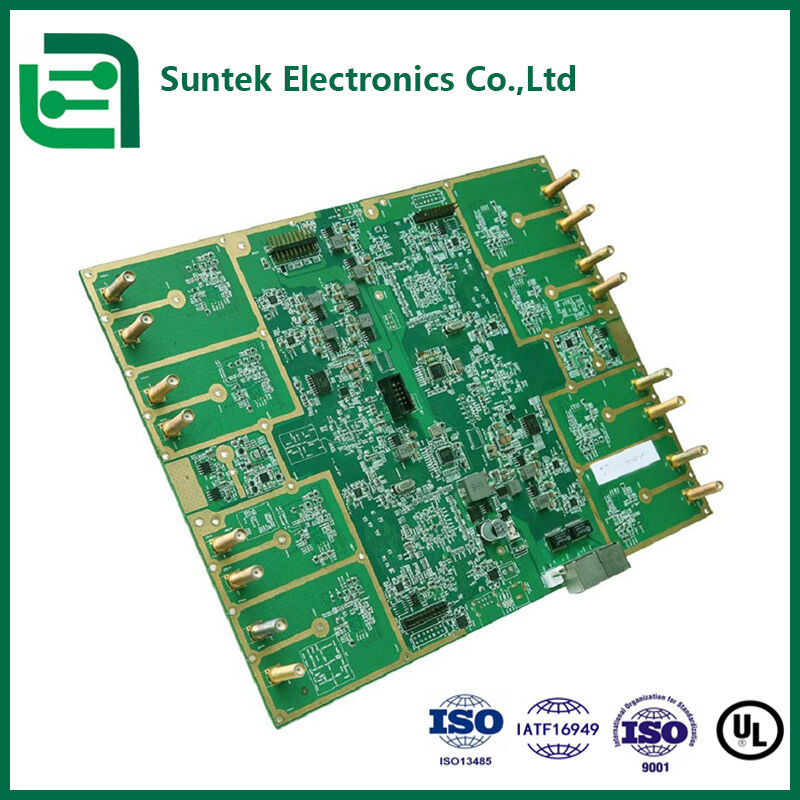

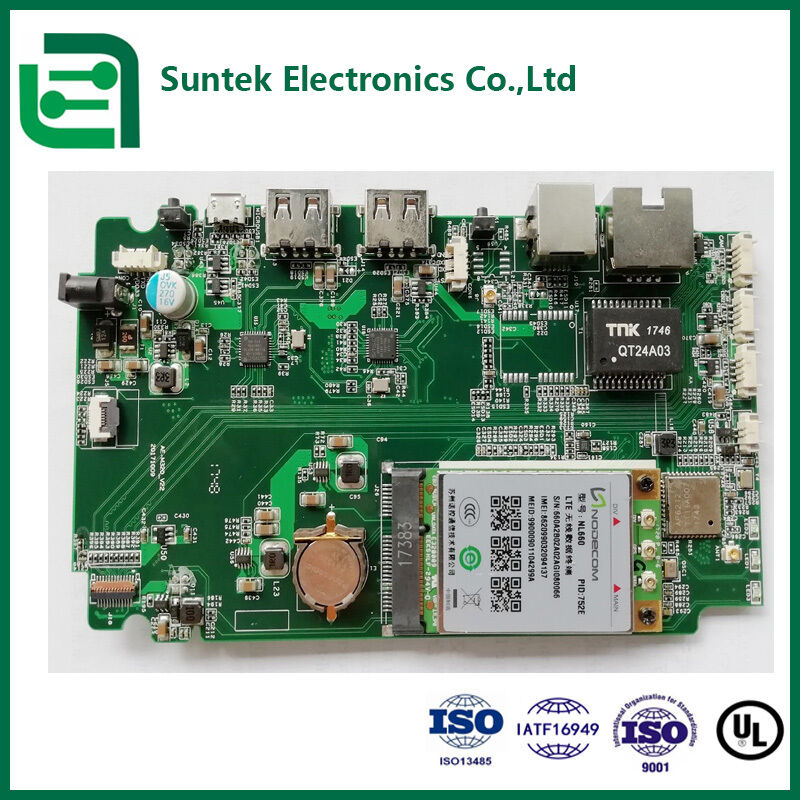

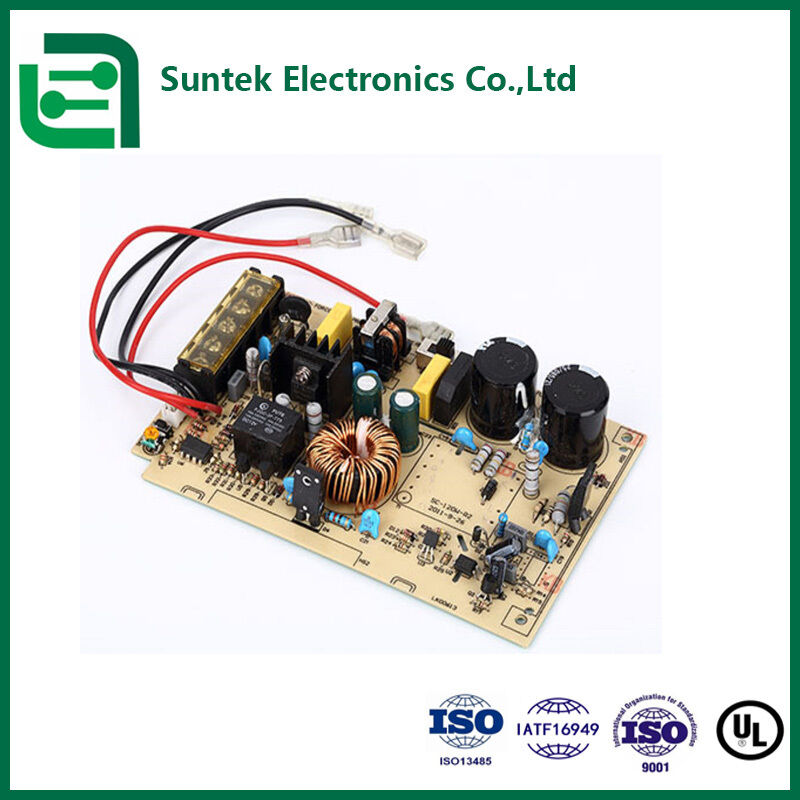

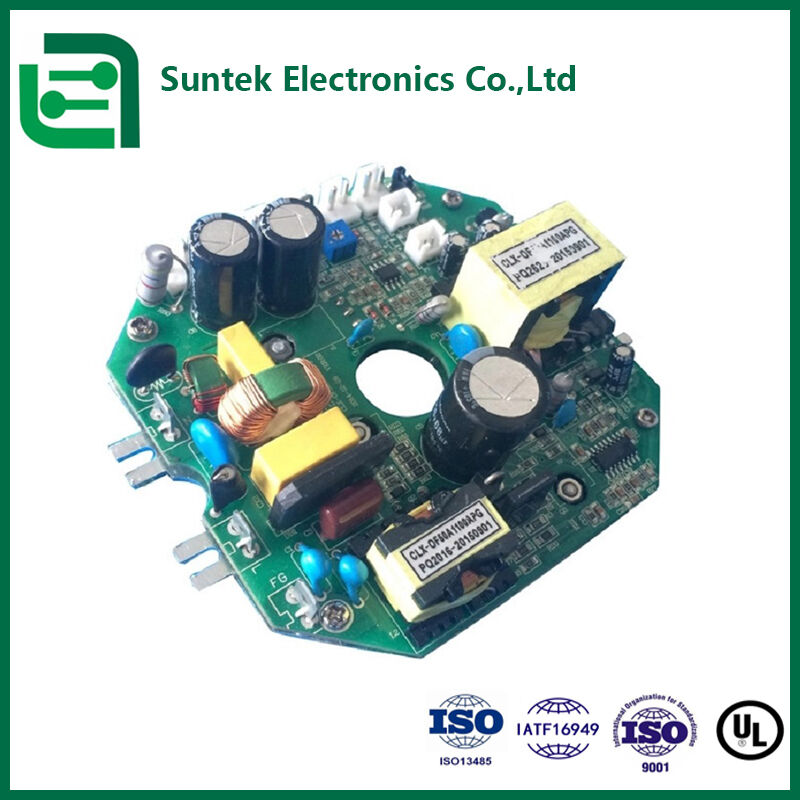

Name: ISO13485 ISO9001 Certified 1L-32L Layers High-Density SMT PCB Assembly for Medical and Industrial Applications
Brand: Suntek Electronics Co., Ltd.
SKU: Y025-1029
Price: 50.00 USD
Availability: InStock

家へ > 製品 > SMT PCBアセンブリ >

ISO13485 ISO9001 Certified 1L-32L Layers High-Density SMT PCB Assembly for Medical and Industrial Applications

ISO13485 SMT PCB Assembly

ISO9001 PCBA

1L-32L Layers Printed Circuit Board Assembly

起源の場所:

中国やカンボジア

ブランド名:

Suntek/BLSuntek

証明:

ISO9001 ISO13485 IATF16949 UL

モデル番号:

Y025-1029

連絡ください

引金を求めてください

製品詳細

材料：:

FR4 ((Tg130-Tg180)/ロジャーズ/アルミニウム

はんだのマスク::

緑、青、黒、赤、白、マット色

銅::

0.5オンス～10オンス

層::

1L-32L

SMT,THT::

はい

厚さ：:

1.0mm/1.6mm/2mm/4mm

RoHS::

鉛または鉛のない

保証：:

1年

穴の最小数:

0.1mm

支払いと送料の条件

最小注文数量

制限なし

価格

Customized products

パッケージの詳細

ESDバッグとカートンによって

受渡し時間

すべてのコンポーネントが装備されてから5-7日

支払条件

T/T

プロトタイプ多層 SMT PCB アセンブリ ENIG 鉛または鉛フリー RoHS ISO9001 ISO13485

最良の価格を入手する

ビデオ

Quick Turn One-Stop Smt Pcba Manufacturing Green Silk with ENIG Surface RoHS

最良の価格を入手する

ビデオ

ISO13485 ISO9001 Certified 1L-32L Layers High-Density SMT PCB Assembly for Medical and Industrial Applications

最良の価格を入手する

ビデオ

1L-32L Layers SMT PCB Assembly with 0.5OZ-10OZ Copper and 0201 Package Support

最良の価格を入手する

連絡ください

0086-731-84874736

今連絡してください

製品説明

ISO13485 ISO9001 Certified 1L-32L Layers High-Density SMT PCB Assembly for Medical and Industrial Applications

Certified for Medical and Industrial Applications (ISO13485, ISO9001)

Suntek Group is a contract supplier in the EMS field providing one-stop solutions for PCB/FPC assembly, cable assembly, and box-build assembly. With facilities in Hunan Province, China and Kandal Province, Cambodia, we deliver qualified products worldwide with ISO9001:2015, ISO13485:2016, IATF 16949:2016 and UL E476377 certifications.

With your Gerber file and BOM, we can manufacture your product
With your physical sample, we provide reverse-engineering services
With your ideas, we offer joint-design services to develop your product

Capabilities Overview

Specifications	Details
Material type	FR-1, FR-4, CEM-1, aluminum clad
Material thickness (mm)	0.4, 0.6, 0.8, 1.0, 1.2, 1.6, 2.0
Layer count	1 to 22 Layers
Max. Board size	23.00" x 35.00"(580mm*900mm)
IPC class	Class II, Class III, Class 1
Finish plating	Solder(HASL), Lead Free Solder(HASL), ENIG, OSP, immersion silver, immersion tin, immersion nickel, hard gold
Copper weight	0.5OZ-2OZ
Trace/space width	3 Mils or greater
Drill clearance	0.1mm(laser drilling)
SMD pitch	0.080" - 0.020" - 0.010"
Solder mask color	Green, red, blue, black, white, yellow

Comprehensive Manufacturing Solutions

PCB/FPC fabrication
Components sourcing
PCB/FPC assembly
Custom cable/harness assembly
Box build

Detailed Services:

SMT, THT, BGA, 0201 Chips assembly
AOI, X-Ray, ICT, FT, Burn-in
Conformal coating or gluing
High-mix, small to medium volume

EMS Advantages

Strict product liability following IPC-A-610 standard
Fluent English-speaking teams
PDCA management tool implementation
100% E-test and visual inspection (IQC, IPQC, FQC, OQC)
100% AOI inspection including X-ray, 3D microscope and ICT
High-voltage test and impedance control test
ISO9001, ISO13485, IATF16949 and UL certified
No minimum order quantity
Focus on low to medium volume production
Quick and on-time delivery

Why Choose Suntek?

As an experienced manufacturer, Suntek provides one-stop services including PCB manufacturing and assembly for global customers. Our strong teams help customers save time and money while delivering highest quality products at competitive prices.

Instant Quote

Receive our quote within 24-48 hours with positive feedback for all your project specifications.

Strong Team

Professional experts provide technical support from PCB design to turnkey assembly without delay.

Automatic Equipment

Advanced automation improves efficiency, enabling high-quality boards at competitive prices.

After Sales Service

We track all orders with instant updates throughout the process from our customer service team.

Our Supports

We ensure cost transparency with BOM cost breakdown sharing and global component suppliers.

Quality Assurance Process:

Customer service procedure
RMA procedure
8D reports
PDCA (Plan-Do-Check-Action) in customer service

Response Commitment:

24-hour response to complaints, issues and queries
Weekly reports
Customer satisfaction questionnaire

Aftersales Services:

1-year guarantee period for all products
Free-of-charge repair
Quick compensation parts replacement

PCB Assembly Quality System

Target: 95% customer satisfaction
Quality Policy: Continuous improvement for perfect quality
Solution: One-stop, Flexible, Continuous improvement
Business Philosophy: Quality Wins Market, Ideas Create The Future
Vision: Long-term win-win partnerships in EMS field

FAQ

Q1: What files do you use in PCB fabrication?

A1: Gerber, PCB. Auto CAD

Q2: How do you make sure the quality?

A2: Our Product is all 100% E-tested. PCB Assembly are with 100% AOI, ICT, FT and Visual checking, 100% X-ray for BGA.

Q3: Can we visit your company?

A3: Welcome to visit our company in Xingsha Industrial Park, Changsha, Hunan province, China.

Q4: What is the lead time?

A4: 3-5 working days for samples, 7-10 working days for batch production, 15-20 working days for PCB assembly.

Q5: Will you keep our information and files secret?

A5: We strictly protect customer designs and can sign NDA agreements.

Q6: How to work with you?

Email us your PCB layout file and BOM list
We confirm within 12 hours and provide quote within 3-5 days
Confirm price, order and payment terms
We proceed with production

With advanced equipment, professional teams, and strict quality control, our products are widely used in industrial control, automotive, telecommunications, medical equipment, and consumer electronics.

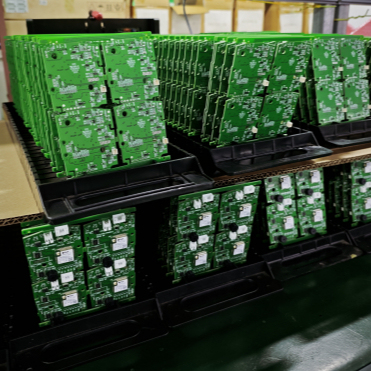

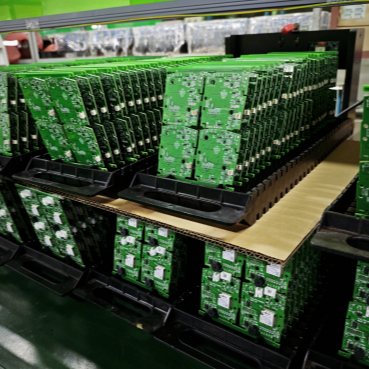

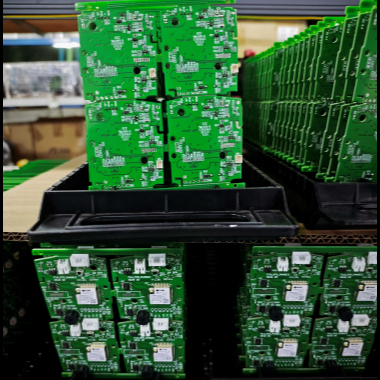

Factory Pictures
